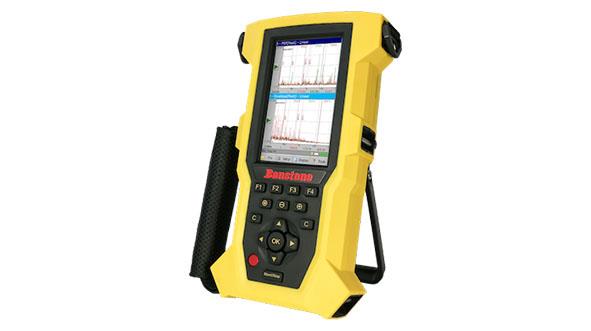

With a large 480 x 800 5-inch TFT color touchscreen, it provides clear and complete information display while the new design of the HMI and keypad function, which is more convenient to use. The soft grip and shoulder bag design make it safer and more convenient to carry.

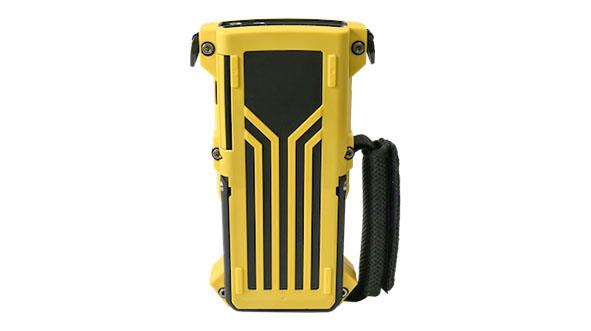

The case is made of two-color injection molding, which not only increases the texture, but also the ABS plastic outer layer is covered with TPR soft material to enhance the protection level. The case also meets the IP65 dust- and water-resistant rating and CE certification.

Memory card is used to store the data, and the data can be retrieved by USB transmission cable or card reader. For smoother operation, the TMS320C6713B DSP with 24bit A/D converter is used for smoother operation and display of Win CE operating system. With 130dB dynamic range, the real-time measurement frequency range reaches 40kHz. 2-channel analog input, expandable to 4-channel analog input, and 1 set of RPM input Two sets of BNC connectors can be used with various s
