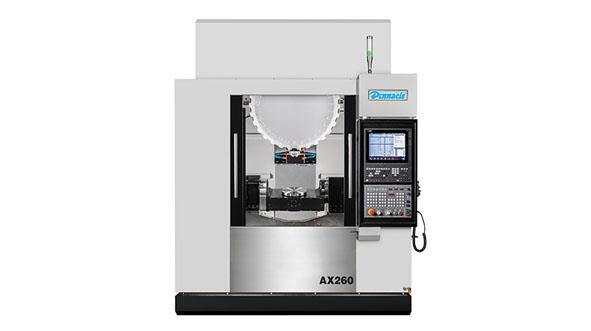

AX260 – 5-Axis Machining Center
PINNACLE MACHINE TOOL CO., LTD.
Pinnacle AX260 Five-Axis Machining Center Introduction
Simplified and robust design
Expert in complex workpiece machining
Multifunctional machining
Worktable diameter 260MM
Material: Constructed from high-quality Meehanite cast iron, stress-relieved for stability. Travel: X/Y/Z axis travel of 510/455/380 mm respectively. Tilt Axis: A-axis tilt range of -30° to +120°, C-axis rotation of 360°. Rapid Feed: 48 m/min. Spindle: BBT30 taper, up to 15000 RPM. Worktable: Diameter of 260 mm, max load 100 kg. Cooling System: Integrated oil cooling to reduce thermal deformation. Tool Capacity: 30-tool automatic changer.
