BOSSMEN focus on expanding its overseas market in the field of humidity control, relying on professional technology and expertise to become an industry leader. The product design is simple and user-friendly, offering customized solutions. BOSSMEN is committed to enhancing equipment performance and meeting the growing demand for intelligent solutions from customers. Through communication with international clients and industry experts, BOSSMEN gains deeper insights into market needs, improves competitiveness, and continuously advances to provide more high-quality options for customers. Protect Everything that Matters! Bossmen at your service!

..................................................................

Model: 2HTDP

Characteristic

Temperature/Humidity Monitoring Unit - Essential Environmental Monitoring Equipment for Warehouses and Production Lines

In production lines, warehouses, or data centers, equipment often generates heat, causing fluctuations in temperature and humidity, which can impact product quality. This is especially critical in warehouses storing spare parts and production materials, or in data centers housing computer equipment that requires strict temperature and humidity control. The Bossmen Industrial Temperature and Humidity Monitoring System is designed to ensure these environments remain stable, becoming a key tool in environmental management for businesses.

Precise Monitoring, Instant Feedback

The Bossmen temperature and humidity monitoring system is equipped with high-precision sensors that accurately measure temperature and humidity levels and provide real-time feedback. If abnormal readings are detected, the system triggers an alarm to help managers respond quickly and maintain a stable production and storage environment.

Key Features:

Built-in memory can store up to 11,900 temperature and humidity records.

Data collection interval can be set between 1 and 240 minutes.

Supports detailed time settings, including year, month, day, hour, and minute.

Data can be downloaded to a computer via RS232 interface, supporting formats like Excel and PDF.

Displays both temperature/humidity graphs and data tables.

Offers temperature/humidity offset calibration and panel lock functions for flexible operation.

Allows setting of upper and lower limits for temperature/humidity, with alarms triggered when outside the range.

Provides flashing warning lights or buzzer alarms to ensure immediate response to abnormal conditions.

Sensors can be separated from the display, with a maximum detection distance of up to 150 meters.

The system includes four signal interfaces to connect with external environmental control devices for comprehensive environment management.

..................................................................

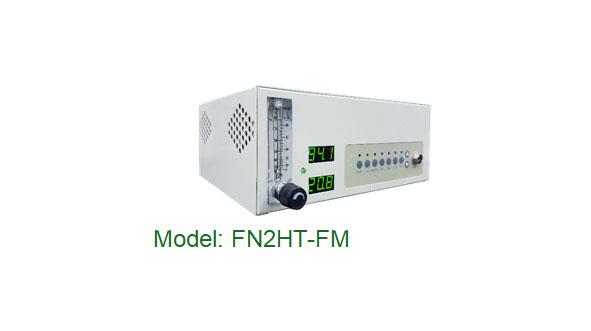

Model: FN2HT-FM

Characteristic

Designed specifically for the semiconductor industry, the Slim Nitrogen Control Unit pairs perfectly with stainless steel nitrogen cabinets, meeting international semiconductor drying and cleanliness standards, such as IEC-TR-62258-3. This standard clearly specifies that wafer and bare die storage environments must maintain at least 99% nitrogen concentration and ensure humidity control between 30% RH and 7% RH to prevent electronic damage from overly low or high humidity.

Bossmen Slim Nitrogen Control System not only accurately regulates humidity but also provides advanced static elimination, effectively preventing dust generation and adhesion, ensuring cleanliness. Paired with an efficient filtration system, it resolves dust interference and complies with ISO14644 Class 6 cleanliness standards. Additionally, the system features energy-saving functionality: when environmental humidity reaches the set standard, nitrogen filling stops automatically, reducing nitrogen consumption by up to 80%.

Product Features:

1.Built-in Memory: Stores up to 11,900 temperature and humidity records.

2.Data Collection Interval: Configurable from 1 to 240 minutes.

3.Detailed Time Settings: Supports year/month/day/hour/minute settings.

4.RS232 Interface: Allows data download to a computer and supports viewing in Excel or PDF formats.

5.Real-Time Data Display: Shows temperature and humidity in both curve graphs and data tables. Offers offset calibration and panel lock for flexible operation.

6.Ionizer Nozzle: Effectively eliminates static, preventing dust accumulation, ensuring a clean environment, and protecting instruments and materials.

7.Humidity Control: Configurable upper and lower limits with alarms triggered when values deviate from set range.

8.Alert System: Equipped with flashing warning lights or a buzzer for immediate abnormal condition alerts.

9.Remote Sensor Detection: Sensors can be separated from the display, allowing detection up to 150 meters away.

..................................................................

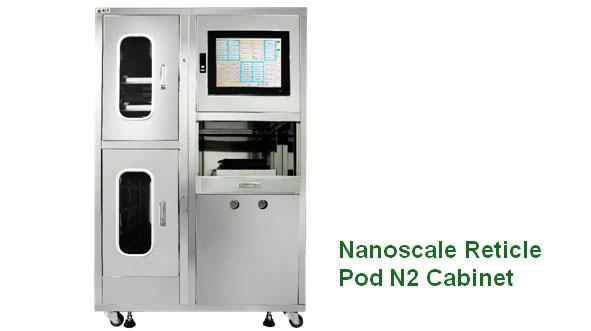

Nanoscale Reticle Pod N2 Cabinet

Model: BM1238

Characteristic

Nanoscale Reticle Pod N2 Cabinet by Bossmen

With the advancement of photolithography technology, the patterns on reticles have become increasingly finer, which in turn increases the risk of reticle contamination and yield loss. The coating on the reticle is particularly delicate and prone to damage, and external dust and chemical residues are potential sources of contamination that threaten the quality of the reticle.

In addition to the manufacturing quality of the reticle itself, the way the reticle is stored is also crucial. To ensure long-term stability, reticles are typically stored in clean nitrogen cabinets. The nitrogen helps to remove chemical contaminants from the reticle and maintain an appropriate humidity level.

The Bossmen Nanoscale Reticle Pod N2 Cabinet not only provides a clean and dry storage environment, but also features an energy-saving design, capable of saving more than 80% of nitrogen usage compared to traditional nitrogen cabinets. Furthermore, the cabinet includes a visualized temperature and humidity display function, further enhancing the reliability and precision of the reticle storage process.

Key Features:

1.Reticle Storage and Retrieval Management: Equipped with access control card readers and RFID systems, the reticle storage and retrieval operations are effectively managed to enhance security and accuracy.

2.Independent Nitrogen Flow Monitoring: Each reticle box is independently monitored for nitrogen flow, and data is reported. The system adopts an

environmentally friendly and energy-efficient design that effectively reduces unnecessary nitrogen consumption.

3.Temperature and Humidity Monitoring: The system allows for the setting, recording, alarming, and offset calibration of temperature and humidity, supporting a humidity range adjustment from 5% to 60% RH.

4.Alert Function: When there are anomalies in the placement or retrieval of the reticle box, the system will trigger an alert and record the event to ensure the operation process is correct.

5.Safety Mode: Features include alerts for doors left open for too long, high humidity, and excessive oxygen concentration, providing comprehensive safety protection.

6.Air Intake Startup and Confirmation: When the FFU airflow starts, the XCDA air intake will automatically begin, ensuring that dry air flows into the system.

7.Nitrogen Air Intake Startup and Confirmation: After passing through the nitrogen purifier, nitrogen is layered and distributed into each reticle box. The nitrogen flow is monitored through the exhaust piping to maintain a stable reticle storage environment.

8.Filtration System:

Programmable Filter Fan Unit (FFU): The oxygen concentration setting triggers the startup conditions to precisely control the air filtration and circulation.

Chemical Filter Mesh: Effectively filters harmful gases such as carbonate ions, sulfides, and ammonia from dry air, protecting the reticle from contamination.

ULPA Air Filter: Filters ultra-fine dust particles, achieving Class 1 level cleanliness and providing a dust-free environment.

Nitrogen Purifier: Filters harmful gases from the nitrogen to ensure the storage environment reaches the highest purity level.
