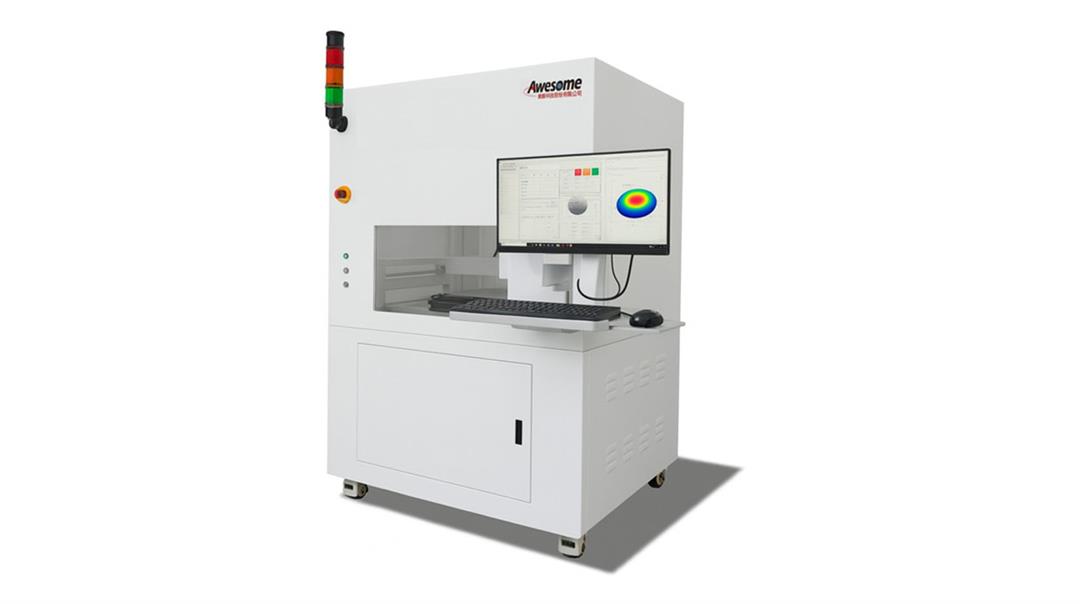

The AT-S300 multifunctional optical wafer measurement system can meet the following measurement requirements:
1.Wafer Layer thickness.
2.Thin film thickness.
3.Surface roughness.
4.Wafer warpage.
5.Wafer profile map.
6.PLP molding layer thickness.
