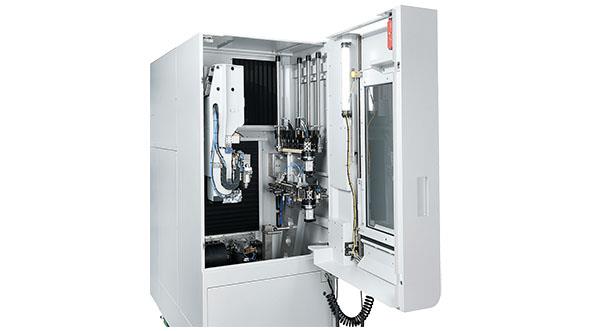

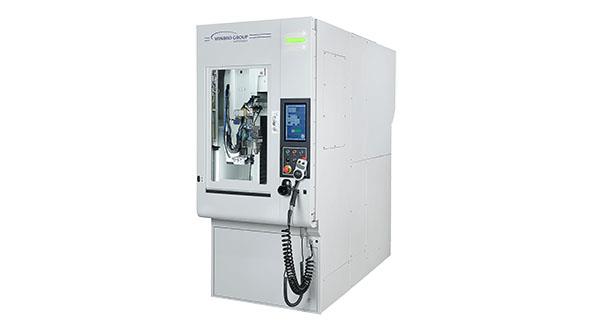

"The HSD-351 is the latest development from Winbro Group Technologies and offers a highly compact solution to high speed single point EDM drilling operations. Features

• 01 NEXT GENERATION OF PROVEN WINBRO TECHNOLOGY Cost Control: advancing proven technology, but reduced cost by integration into the machine. 24 & 49 electrode cartridge - quick, simple change. Automatic electrode change - fast: (<15 sec) spit, load, qualify. Single sealing & Single collet covering electrode range from 0.25mm - 3.0mm diameter (0.010” - 0.118”).**

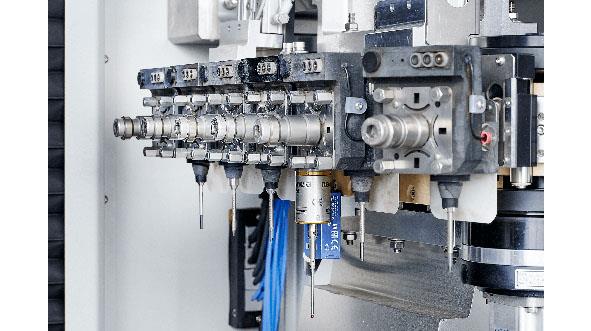

*02 Automatic Toolchanger Twin 14-Station carousels. Automatic Barrel Changer (ABC). Barrels hold 15, 25 or 49 electrodes each, up to 700mm (27.5”) long. Automatic Nose Guide Changer (AGC). Nominally holds up to 13 nose guides & 1 probe.

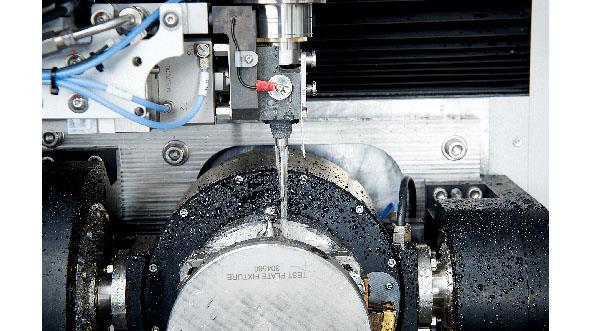

*03 Auto Part Chuck Integrated to Rotary Erowa pneumatic flat chuck (standard). 10kg (22lb) capacity (fixture & part). Chip reader for fixture identification. Single & multi-blade fixtures (depending on size). Part flushing.

*04 New Generator Solid State EDM Generator (Air-cooled).

*05 Intuitive User Interfacesystem Simplified programming via TCPro and TCPost. Part model visible to operator during machining. Graphical feature selection for rework.

*06 Automation Ready Machine designed with automation in mind. Front or top load/unload. Cobot / AGV solutions.

*07 Digital Ready OPC-UA or MT Connect interface options. Key Performance Variables monitored in real-time. DAX – Data Acquisition system: records detail of each feature.

*08 Part Life Serial number control: Track the progress of each component at each machining operations by serial number. Intelligent factory: Know exactly what operations have been completed on each part & when. Damage limitation: Prevent unplanned re-machine a feature that is already complete.

*09 6 Point Probing On machine Renishaw probe enables accurate, automated machine calibration. Cost control: keep fixtures simple and low cost. MP250 Rengage probe carried on AGC carousel.

*10 Integrated Electrode Flow Meter Options Monitor & record water flow in electrode, nose guide & part before drilling.

*11 Electrode Verification On machine quill position check/verification. Minimise True Position deviation.

*12 Signature Analysis (including: Breakthrough Detection) Backwall impingement control (class leading: as proven on HSD6). Infinitely variable parameter selection during each feature based on user definable criteria.

*13 Shaped Hole Capable Advanced shaped-hole generation with high production rates. Generation of complex 2D and 3D diffuser holes to design intent.

*14 Auto-Recovery / Recut Graphical user interface enable operator to see part in 3D, manipulate and identify feature requiring recut. Recut an incomplete hole automatically. Machine can recover automatically from interruption mid shaped hole at the exact point it stopped. "
