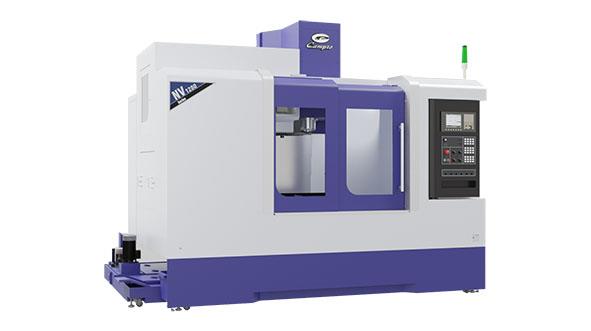

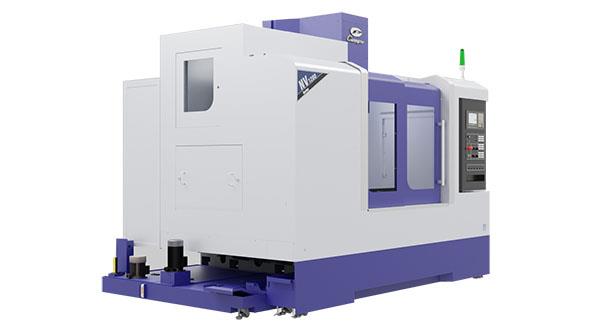

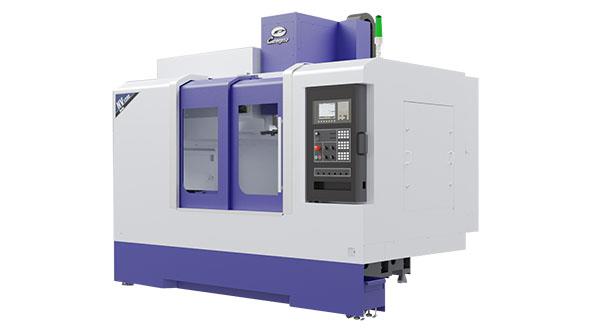

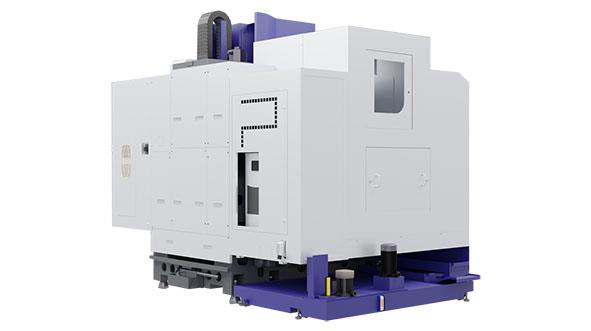

The NV series provides more Y-Axis travel than other Vertical Machining Centers on the market providing increased flexibility.

• Heavy-duty roller type linear guideways on 3 axes which provide integration of heavy cutting ability from box way and fast movement ability from linear guide way.
• Z-axis servo motor with brake replaces counter-balance to provide optimal surface accuracy on 3D machining.
• Pretensioned class C3 precision ballscrews on 3 axes help to eliminate blacklash.
• Bearings with dust-protection device are assembled by 3 sets both in the front and rear.
• One-piece column which designed with shoulder to support tool magazine to decrease vibration and increase the machine stability while tool changes.
• Optional max. 4/5-axis table diameter allows more working area and less interference between cutting tools and workpieces.
