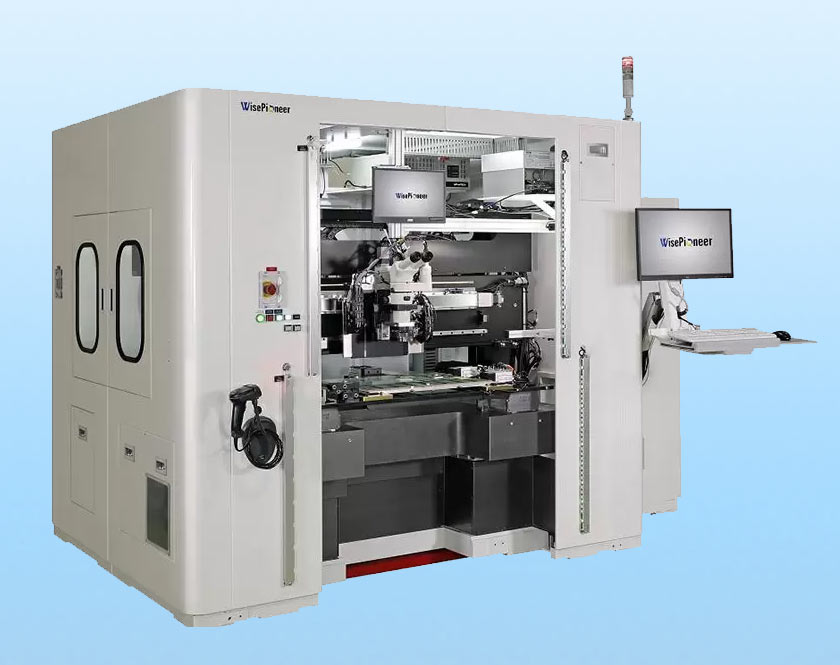

PCIM-3000

Features

• Replace manual work and reduce human resource costs.
• Automated high-speed scanning to improve measurement accuracy and repeatability.
• High-precision 2D / 3D dimension topography measurement function.
• Statistical management of user inspection data.
• Automatic storage and reporting of inspection data.

Applications

• Probe Tip Measurement Reproducibility: ≤ 1 μm
• Guide Plate Measurement Reproducibility: ≤ 3 μm
•  Screw Height Measurement Reproducibility: ≤ 5 μm
• Measurement Item: Tip Length, Tip Diameter, Tip Alignment, Tip Planarity, Guide Plate Planarity, Screw Height, PCB components
